VLX 100 Bifold / Folding Door

VLX 100 Bifold / Folding Door in Austin, TX | Hale Windows Austin

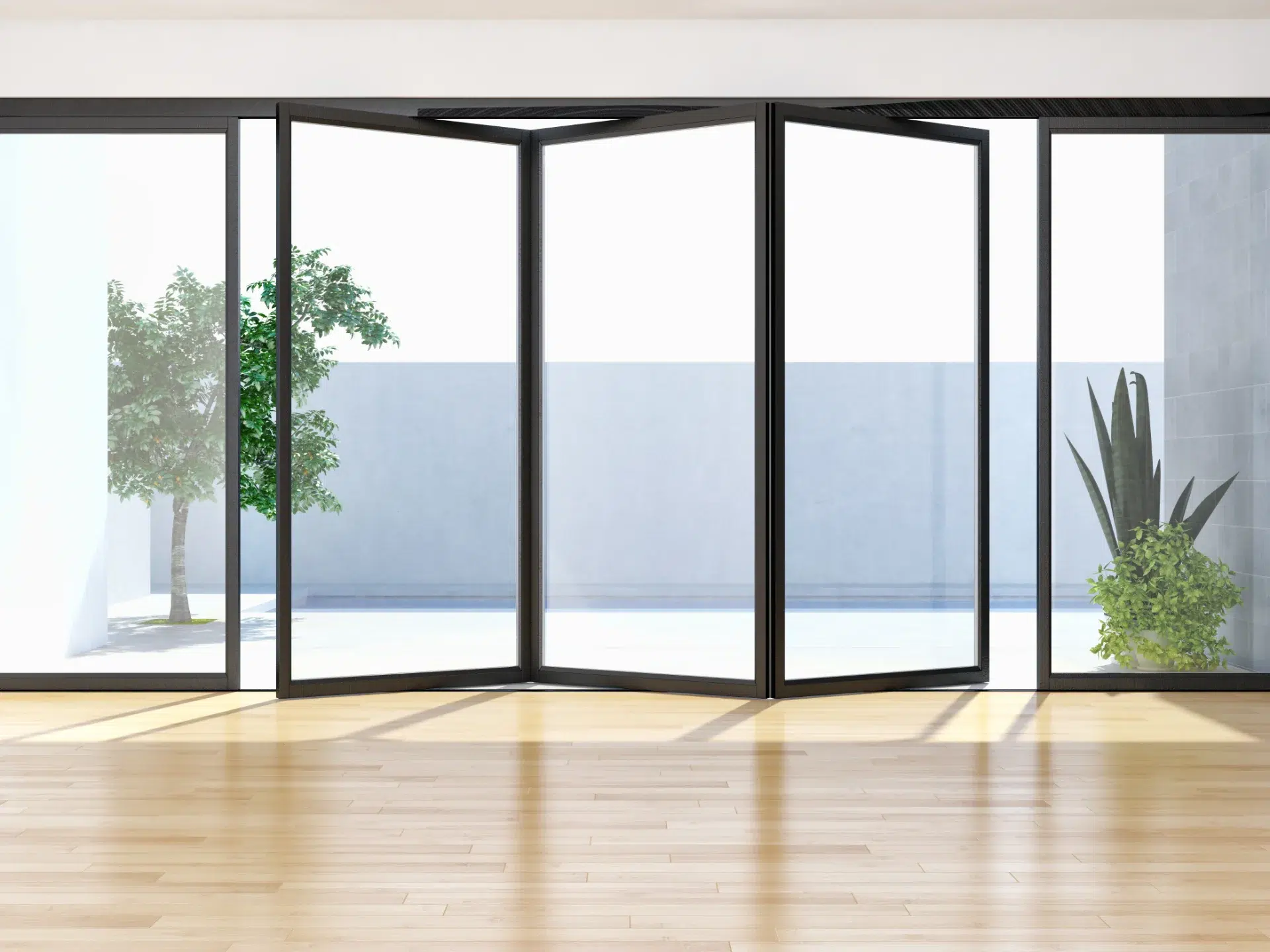

The ViewLux VLX 100 bifold door is a floor-to-ceiling accordion-style aluminum system that opens entire walls, connecting your living room or kitchen directly to a patio, deck, or pool area. In Austin, where October evenings and April afternoons beg for open-air living, homeowners choose the VLX 100 because it disappears almost completely when open. Hale Windows Austin is an authorized ViewLux installation partner, which means you get factory-backed warranty protection plus a local Austin crew that measures, installs, and services the door correctly. Call (254) 736-6486 to schedule a free on-site measurement.

Call (254) 736-6486

Product Overview – VLX 100 Bifold / Folding Door

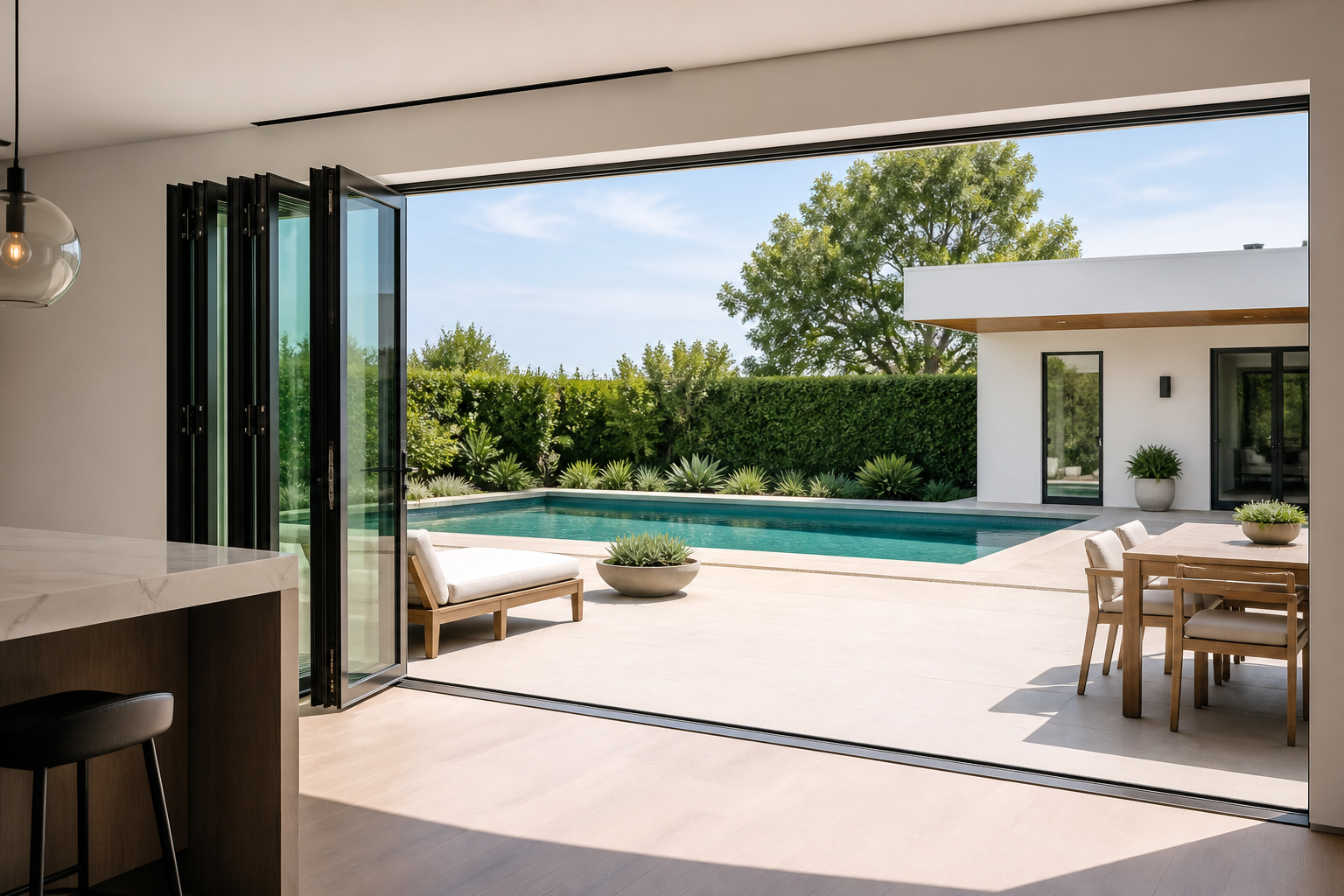

The VLX 100 is built around a simple idea: a wall that folds away. Instead of a single swinging door or a sliding panel that leaves half the opening blocked, the bifold system stacks its panels accordion-style to one or both sides, opening up to 20 feet of uninterrupted passage. That’s what makes it the default choice for Austin homeowners who want a true indoor-outdoor entertaining space off the kitchen, a wide transition onto a covered back porch, or a restaurant-style connection to a backyard pool.

The engineering underneath matters more than the look. Each panel runs on a track system that has to carry serious weight while staying square over decades of daily use. The VLX 100 uses a 2.56-inch aluminum profile with 0.098-inch wall thickness, which gives the frame the stiffness needed for wider spans without sagging or binding. Aluminum handles Austin’s humidity and temperature swings better than wood or vinyl, especially on west-facing walls that get hammered by afternoon sun. And because the VLX 100 is a genuine bifold, not a modified sliding door, the hardware is designed from the start for repeated folding cycles, not adapted for it.

For Austin buyers, the practical difference shows during the six months of the year when the weather cooperates. You fold the door open, the wall disappears, and the patio becomes part of the house. When the door is closed, you’re not looking through bulky frames, you’re looking through narrow vertical stiles and wide glass panels that keep the view intact.

Technical Specifications

Here’s what the VLX 100 brings to the table, in plain terms:

• Frame wall thickness: 0.098″ aluminum, which resists warping and keeps panels square over long spans.

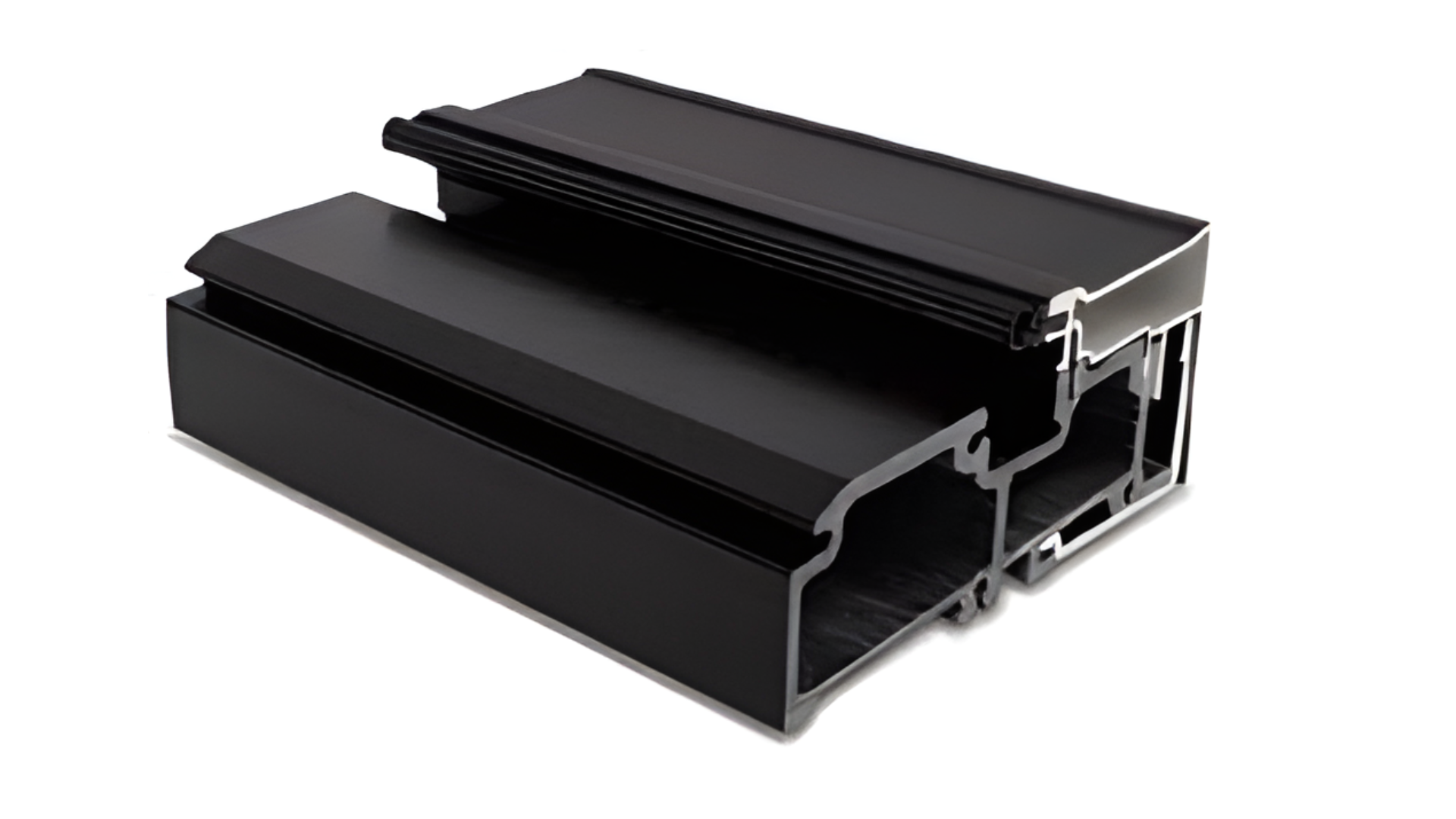

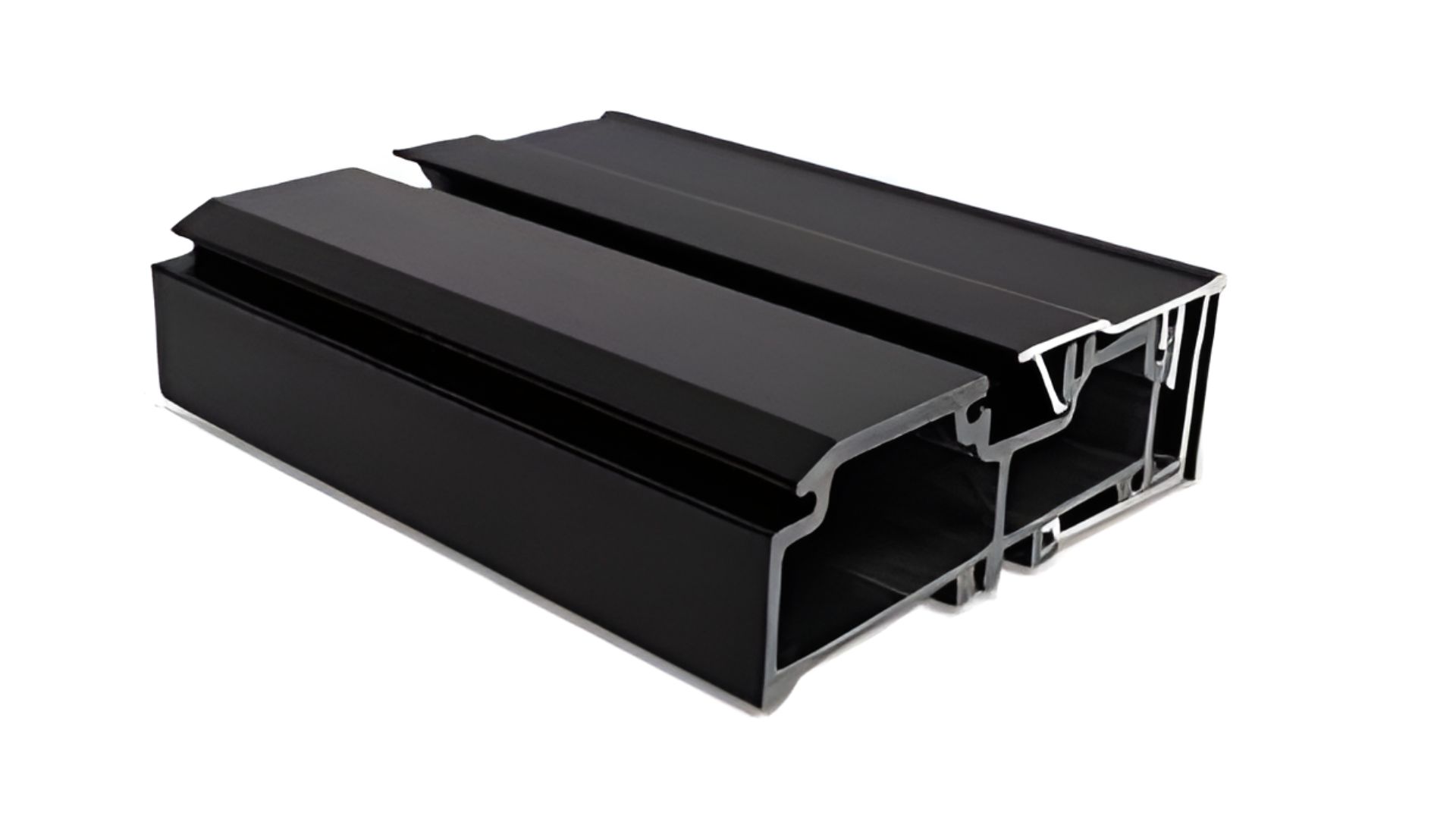

• Profile width: 2.56″, a slim sightline that maximizes glass area without sacrificing structural stiffness.
• Maximum span: Up to 20 feet wide across a single opening, depending on panel count and glass weight.
• Track configurations: 2-panel, 3-panel, 4-panel, 5-panel, and 6-panel layouts, with panels stacking left, right, or split to both sides.
• Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, and Black Tint.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood.
• Screen option: Retractable screen available, or no screen at all.

Performance Features

Thermal Efficiency
The VLX 100 uses a thermal break in the aluminum frame, which separates the interior and exterior metal so heat doesn’t conduct straight through. Low-E glass options add another layer of protection, and the system carries NFRC-rated energy performance data, so you can compare actual U-factor and solar heat gain numbers before you buy.

Acoustic Performance
If you live near MoPac, Lamar, or anywhere with steady traffic, you’ll notice the difference a properly sealed bifold makes. The VLX 100’s gasketing and tight panel alignment reduce sound transmission, and laminated glass upgrades cut noise further, keeping conversation indoors comfortable even when the outside world is loud.

Airtightness & Weather Seal
Every perimeter joint gets sealed with AAMA 812 low-expansion foam, which fills voids without warping the frame. Combined with interlocking panel gaskets, this creates an airtight envelope that stops drafts, keeps conditioned air inside, and prevents the whistling you get from lower-quality door systems on windy days.

Waterproofing
Austin’s spring storm season is the real test for any door. The VLX 100’s sill design and weatherstripping direct water out and down, not in. Panoramic bifolds fail when water pools in the track or seeps under the sill, and this system is engineered to prevent both. Hale Windows Austin performs a water test on every installation before we call the job done.

Wind Resistance
The VLX 100 is wind-load rated and sized for local climate requirements, including the gusts that come through Travis County during spring and fall front lines. The multi-point locking hardware and reinforced panel connections keep wide openings stable even when the door spans 20 feet.

Security & Hardware
Each panel locks at the top and bottom, not just the middle, so the door resists prying across its full height. Hinges and rollers are heavy-duty and serviceable, and the laminated glass option provides impact resistance that holds the panel together even if struck. For Austin homeowners, that’s real peace of mind on street-facing back walls.

Color & Glass Options

The VLX 100 comes in six finishes, and the right choice depends on your home’s style. Premium Black is the most common pick for modern and contemporary Austin builds because it creates a crisp contrast against light stucco or limestone. Pure White suits traditional Hill Country homes and pairs well with white trim. Anodized Silver gives a raw-metal, industrial look that ages gracefully; Bronze leans warmer and hides fingerprints well. Champagne is a softer metallic that works nicely on mid-century homes, and Teak Wood gives the warmth of wood grain without any of the maintenance.

Glass choice matters just as much. Clear maximizes transparency and is the budget-conscious default. Low-E adds a microscopic coating that reflects heat, which matters a lot on south-facing and west-facing Austin walls. Tempered glass is safety-rated and required in most door applications; Laminated adds impact resistance and sound reduction. Gray Tint and Black Tint cut glare and add privacy, popular choices for pool-facing and street-facing openings in Austin.

Installation by Hale Windows Austin in Austin

The best door in the world performs no better than the crew that installs it. A bifold door that is out of level by even a quarter inch will bind, drag, or leak within a year. That’s one reason ViewLux requires authorized installation for full warranty coverage, and it’s a big part of why Hale Windows Austin exists as a dedicated installation partner.

Our process starts with a pre-installation inspection of the rough opening. We verify the header, the subfloor, the wall plumb, and the lintel condition before we order anything, because catching a structural problem before the door shows up is a lot cheaper than fixing it after. On install day, we set the frame level, plumb, and square using shims and a laser, then anchor it through the frame into the structure. Every perimeter joint gets AAMA 812 low-expansion foam sealant, and the flashing and sill are integrated with your home’s existing weather barrier so water sheds outward, never inward.

We install every VLX 100 to AAMA 2400/2410 standards, which are the industry benchmarks for fenestration installation. After the door is set, we run a water test, cycle every panel multiple times, adjust the hardware, and walk you through operation and maintenance before we leave. Austin’s climate, particularly our 35 to 40 inches of annual rain and the occasional freeze, demands that every seal be right the first time. We’d rather take an extra hour on install day than get a call after the first storm.

Frequently Asked Questions – VLX 100 Bifold / Folding Door

Get a Quote – VLX 100 Bifold / Folding Door in Austin

If you’re planning a renovation in Tarrytown, Barton Hills, Mueller, Cedar Park, or anywhere in the greater Austin area, the first step is a free on-site measurement. We’ll assess your opening, talk through panel configurations and glass options, and give you a written line-item quote with no surprises later. Call (254) 736-6486 to schedule yours.

Written by the team at Hale Windows Austin, authorized ViewLux installation partner serving Austin and Central Texas.
