VLX 100 Double Swing / French Door

VLX 100 Double Swing / French Door in Austin, TX | Hale Windows Austin

The VLX 100 Double Swing door is a paired aluminum French door system built for homeowners who want wide, symmetrical openings without the maintenance headaches of wood or vinyl. At Hale Windows Austin, we’re an authorized ViewLux installation partner, which means you get the real product, installed by a crew that knows the frame inside and out. This is the door you choose when you’re opening a dining room onto a covered patio in Tarrytown, or connecting a Hill Country home’s great room to a back deck. The VLX 100 handles spans up to 96 inches wide, which makes it a practical replacement for older sliding doors that only open halfway. Call us at (254) 736-6486 to talk through your project, or keep reading to see what makes this door worth a serious look in Austin.

Call (254) 736-6486

Product Overview – VLX 100 Double Swing / French Door

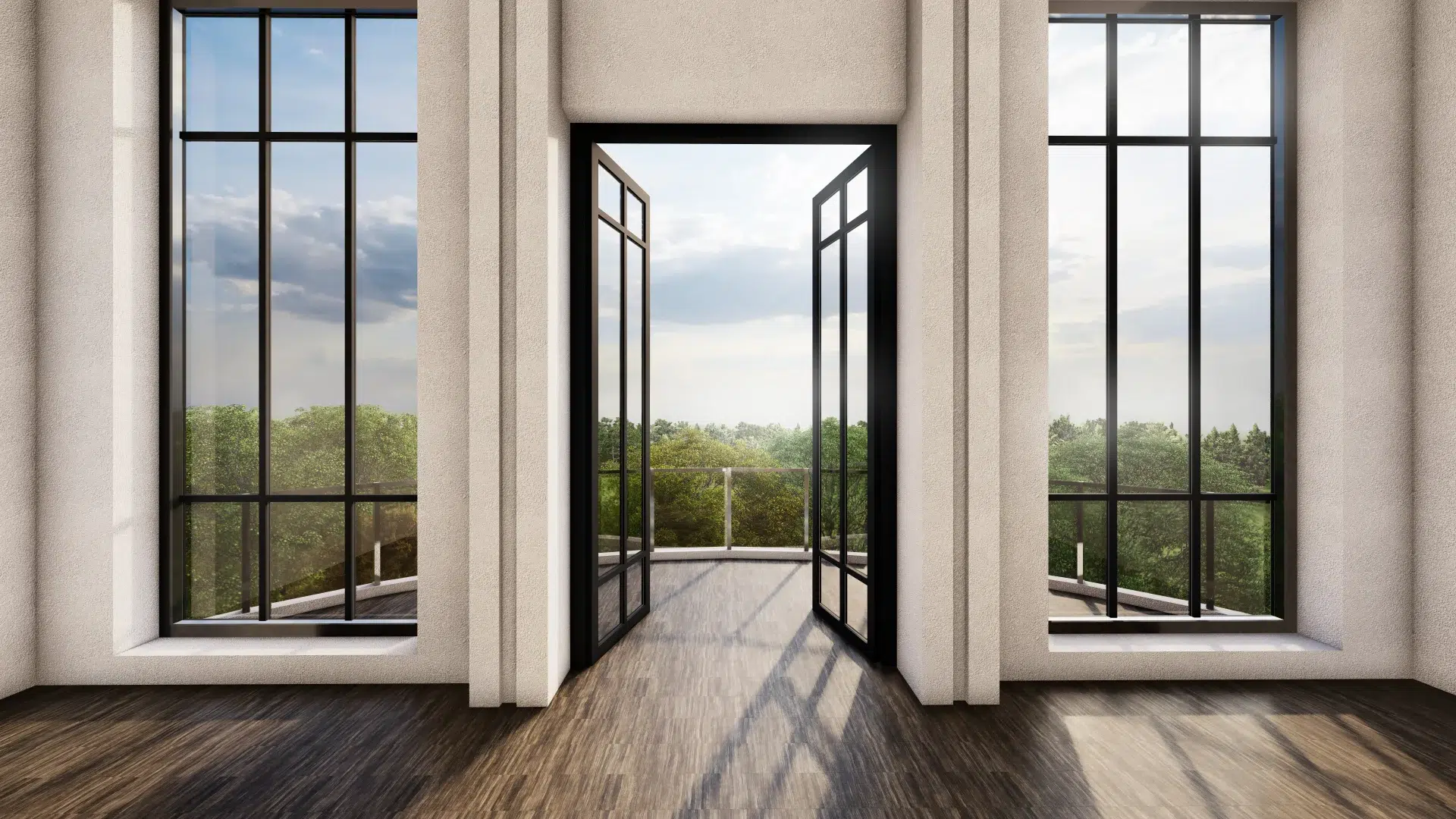

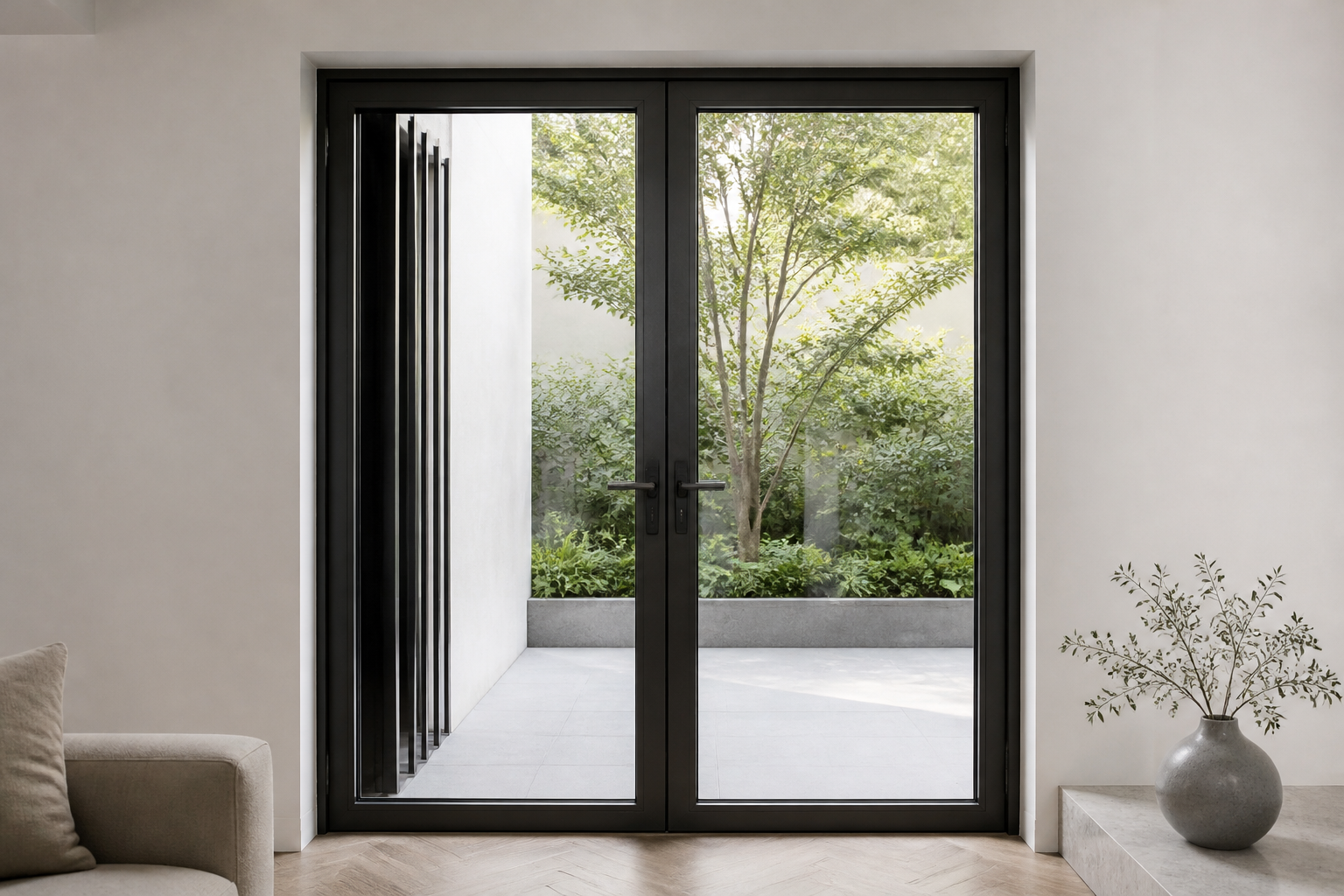

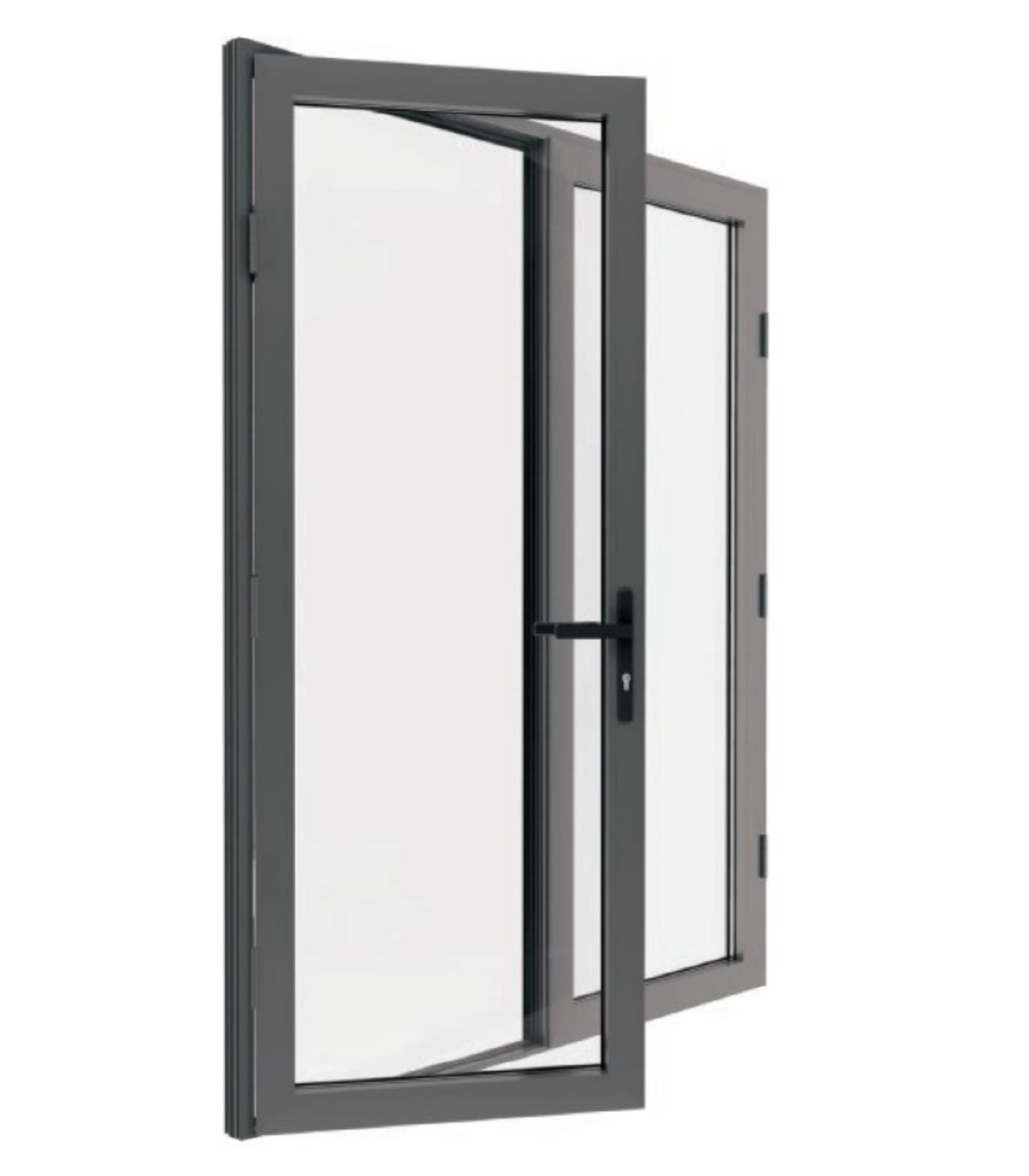

The VLX 100 Double Swing pairs two full-height door panels that swing open from the center, giving you a clean, unobstructed opening when both leaves are thrown wide. Unlike a slider, there’s no fixed panel blocking half the frame. That’s the whole appeal. You get symmetrical sightlines whether the doors are open or closed, and the flush threshold means there’s nothing to trip over when you’re carrying a tray of brisket out to the patio.

ViewLux engineers this door around an aluminum frame with a wall thickness of 0.098 inches and a profile width of 2.56 inches. In plain terms: the frame is beefy enough to stay square over decades, but slim enough that it doesn’t dominate the wall. The hardware is multi-point lock hardware, which engages at multiple locations along the frame rather than a single latch at the handle. That matters in Austin, where a door that only locks in one spot is a door that eventually sags and lets air in around the corners.

Architecturally, this door fits best in homes that lean modern or transitional. Think stucco exteriors in Mueller, limestone ranch houses in Dripping Springs, or new builds in East Austin with floor-to-ceiling glass. It’s a door that disappears into the wall when it’s open and reads as a crisp, architectural frame when it’s closed. Buyers choose the VLX 100 over wood French doors for the same reason they choose aluminum windows: they’re done maintaining painted wood doors that swell in August humidity and stick.

Hale Windows Austin has installed this series in homes from Round Rock to Buda. What we hear most from homeowners after installation is that they didn’t realize how much light they were losing with their old setup, or how much floor space a sliding door track eats up. The VLX 100 solves both.

Technical Specifications

Here’s a clean breakdown of what you’re getting with the VLX 100 Double Swing / French Door. If you’re pricing this against other aluminum French door systems in Austin, these are the numbers that actually matter.

• Frame wall thickness: 0.098″ extruded aluminum
• Profile width: 2.56″ face dimension
• Maximum panel span: 96″ total opening width
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable Screen, or no screen
• Locking: Multi-point lock hardware, engaged at top, bottom, and center
• Threshold: Flush (low-profile) sill for barrier-free transition
• Energy standards: Thermal break technology, NFRC-rated
• Installation standard: AAMA 2400/2410 compliant installation practices

One note on the span: not every opening can take the full 96 inches. Rough opening size, structural header condition, and exposure all factor in. When we measure your job in Austin, we’ll give you an honest answer on what your wall can carry.

Performance Features

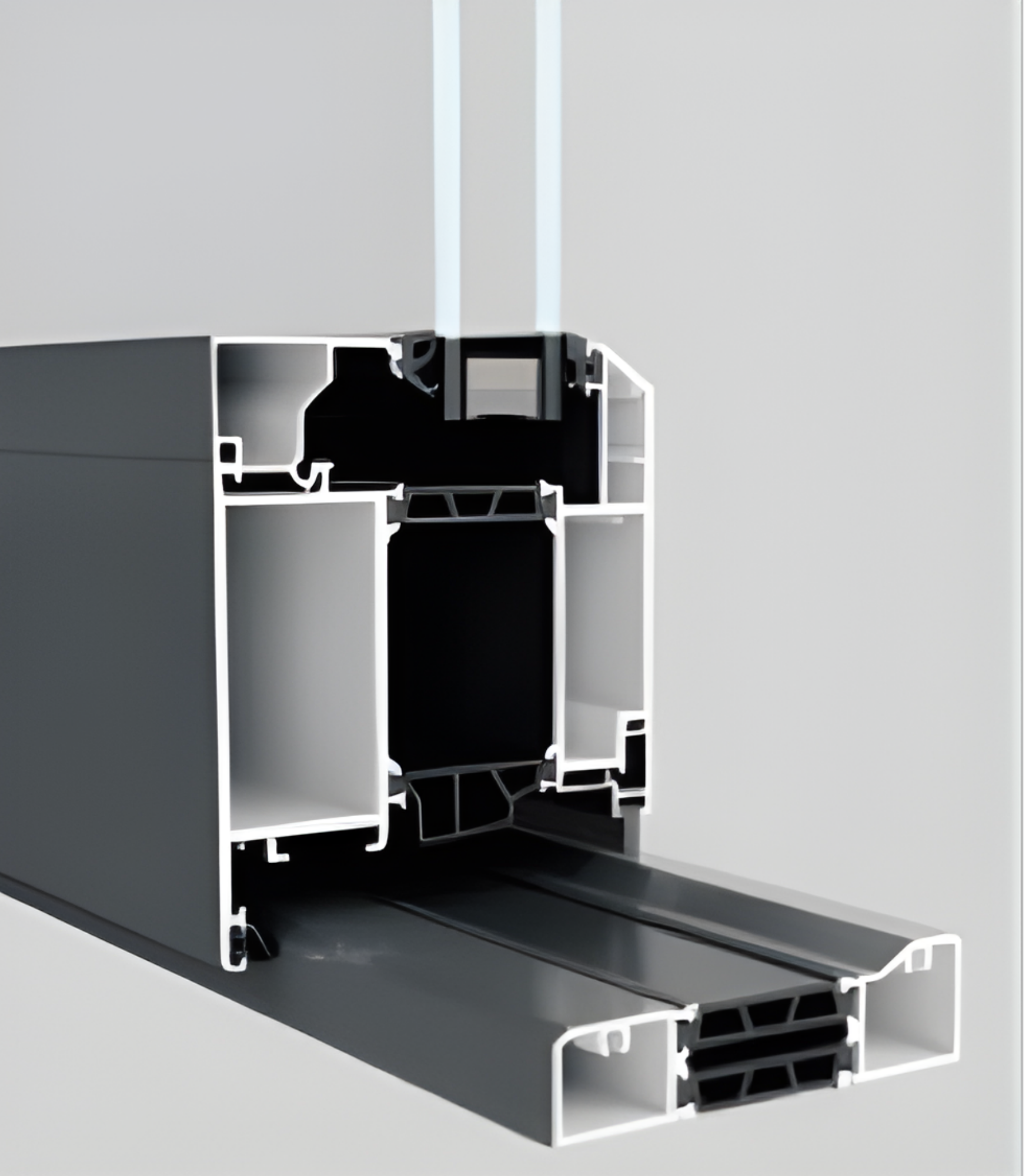

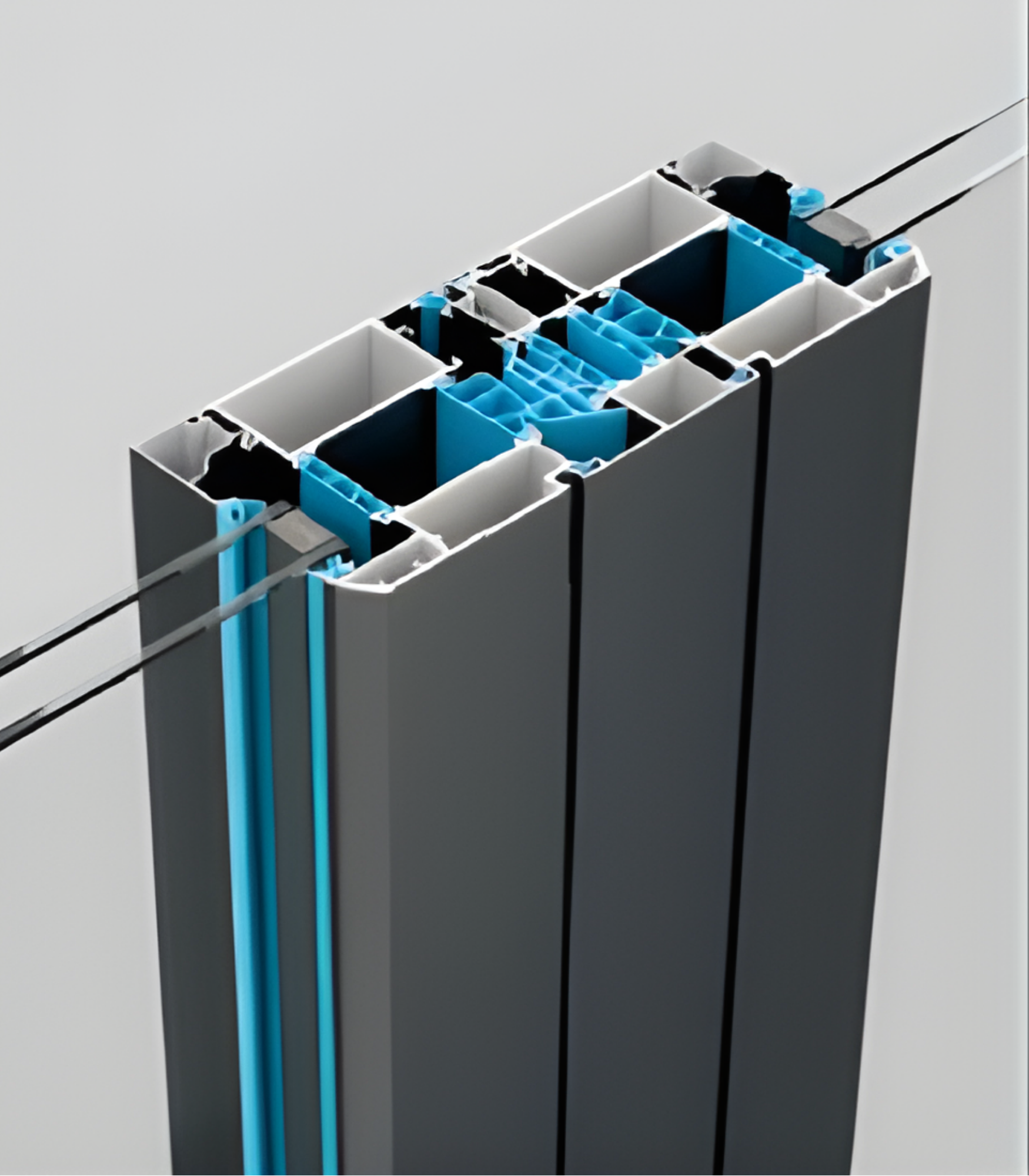

Thermal Efficiency. The VLX 100 frame uses thermal break technology, which separates the interior and exterior aluminum with a non-conductive barrier. This prevents the frame from transferring heat directly into your home. Austin summers push 100 degrees for weeks straight, and a thermally broken aluminum frame is the difference between a door that radiates heat and one that doesn’t.

Acoustic Performance. The 0.098″ frame extrusion plus tight perimeter sealing does more than keep air out. It cuts sound transmission significantly compared to single-pane or wood-framed doors. If you live near Lamar, South Congress, or any of Austin’s louder corridors, a properly sealed aluminum French door is a real quality-of-life upgrade. Laminated glass adds another layer of sound reduction.

Airtightness & Weather Seal. The door’s weatherstripping works with the multi-point lock to create continuous compression around the full frame perimeter. When both leaves are locked, the seal tightens evenly, not just at the handle. This is part of what makes the VLX 100 achieve its airtightness ratings.

Waterproofing. ViewLux designs the VLX 100 with weep channels and internal drainage paths in the frame. The sill directs water out and away instead of trapping it against the interior. Hale Windows Austin then installs the unit with AAMA 812 low-expansion foam sealant on all perimeter joints, so the wall cavity stays dry through every flash flood and thunderstorm that rolls through Central Texas.

Wind Resistance. The door is wind-load rated for local climate requirements, which means it has been engineered and tested to handle the gusts that come with Austin’s spring storm season. For homes in more exposed locations, the laminated glass option adds significant impact resistance. Hale Windows Austin confirms wind-load requirements during the pre-install inspection.

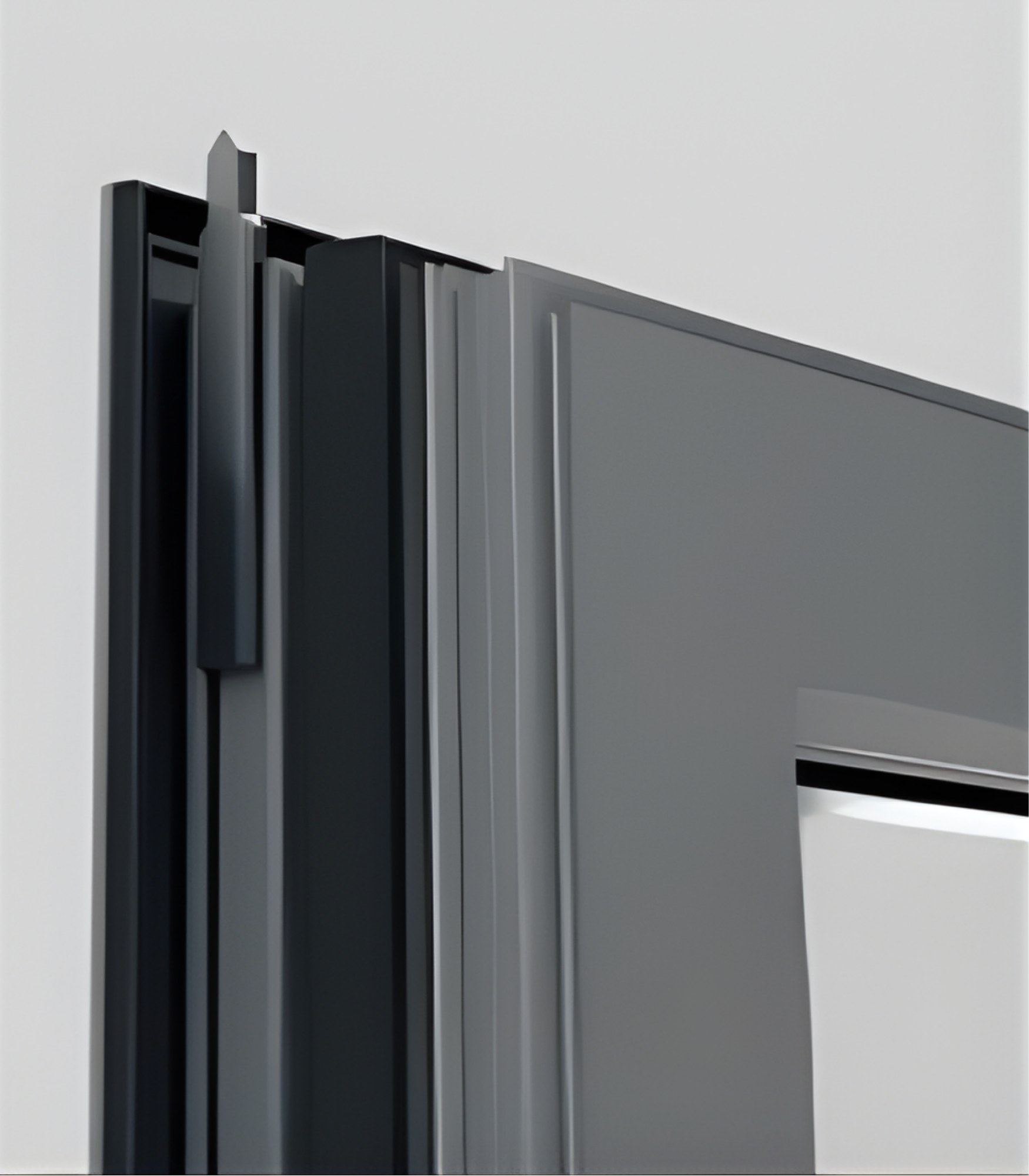

Security & Hardware. The multi-point lock hardware is the standout feature here. Instead of a single deadbolt, the VLX 100 engages locking pins at three points along the active leaf, which makes forced entry substantially harder. The hardware is flush-mounted into the aluminum frame, so there’s no bulky surface plate. It locks like a bank vault door and looks like a design detail.

Color & Glass Options

The VLX 100 comes in six finishes. Premium Black is our most requested color in Austin right now, particularly in modern homes with black window frames. It reads crisp and architectural. Pure White works well on traditional homes or anything with painted white trim. Anodized Silver is the classic aluminum look, durable and understated, and it’s a popular pick for mid-century moderns in neighborhoods like Allandale. Bronze and Champagne lean warmer, and they suit limestone and stucco exteriors well. Teak Wood is a powder-coated finish that mimics wood grain, which gives you the look of a wood French door with zero maintenance.

For glass, Clear is the standard. Low-E is worth the upgrade in Texas; it blocks a meaningful portion of solar heat gain while staying visually transparent. Frosted and Obscure glass give you privacy without curtains, often used for doors leading to side yards or courtyards. Tempered glass is standard in door applications for safety. And if you want the highest level of protection against storm debris or forced entry, ask about laminated glass.

Installation by Hale Windows Austin in Austin

Here’s the thing about aluminum French doors: they’re only as good as the person who puts them in. A door that’s installed one degree out of square will bind at the locks, leak at the corners, and eventually fail at the hinges. Manufacturer warranties cover defects in the product, not mistakes in the installation. We’ve seen doors from premium brands fail within five years because someone rushed the rough opening prep or skipped the perimeter seal. That’s why we install every VLX 100 Double Swing door to AAMA 2400 and 2410 installation standards.

Our process starts with a pre-install inspection. We check the rough opening dimensions, verify the header is sound, and confirm the substrate is dry and stable. Once we’re confident the opening is correct, we set the frame level, plumb, and square, shimmed at every anchor point. Then we seal the full perimeter with AAMA 812 low-expansion foam sealant, which fills the gap between the frame and the rough opening without bowing the aluminum. After the panels go in, we adjust the multi-point lock hardware until both leaves close clean and lock with even compression. Then we run a water test, inspect the drainage weep system, and walk the interior. The last step is a full cleanup; we haul the old door, the packaging, and every scrap of foam.

In Austin, the installation details matter more than in drier climates. We get extreme heat in August, high humidity through the shoulder seasons, and intense UV year-round. Foam sealant degrades faster here than it does in Seattle or Chicago, so we use products rated for Central Texas conditions. The freeze-thaw cycles we get in February, when temperatures swing from 20 degrees at night to 60 by noon, put real stress on a door frame. Setting the door correct on day one is what keeps it sealed ten years later.

Frequently Asked Questions – VLX 100 Double Swing / French Door

Get a Quote – VLX 100 Double Swing / French Door in Austin

If you’re researching the VLX 100 Double Swing door, you’re probably ready to put real numbers against it. We’ll measure your opening, review your glass and finish options, and give you a written line-item quote before any work begins. Call Hale Windows Austin at (254) 736-6486 to schedule your free on-site measurement. Serving Austin, Round Rock, Cedar Park, Pflugerville, Buda, and the greater Central Texas area.

Written by the team at Hale Windows Austin, authorized ViewLux installation partner serving Austin, TX.
