VLX 80 Fixed / Picture Window

VLX 80 Fixed / Picture Window in Austin, TX | Hale Windows Austin

The VLX 80 Fixed Window is what you choose when you want the view to do the talking. It’s a non-operable picture window built on a slim aluminum frame, engineered for floor-to-ceiling glass with no visible hardware interrupting the sightline. Homeowners in Austin use it for living rooms that face the Hill Country, bedrooms overlooking Lake Travis, and modern builds where wall-to-wall glazing is the whole point. As an authorized ViewLux installation partner, Hale Windows Austin supplies and installs the VLX 80 throughout the greater Austin area, from Round Rock to Dripping Springs. Call (254) 736-6486 to discuss your project or schedule a free on-site measurement.

Call (254) 736-6486

Product Overview – VLX 80 Fixed / Picture Window

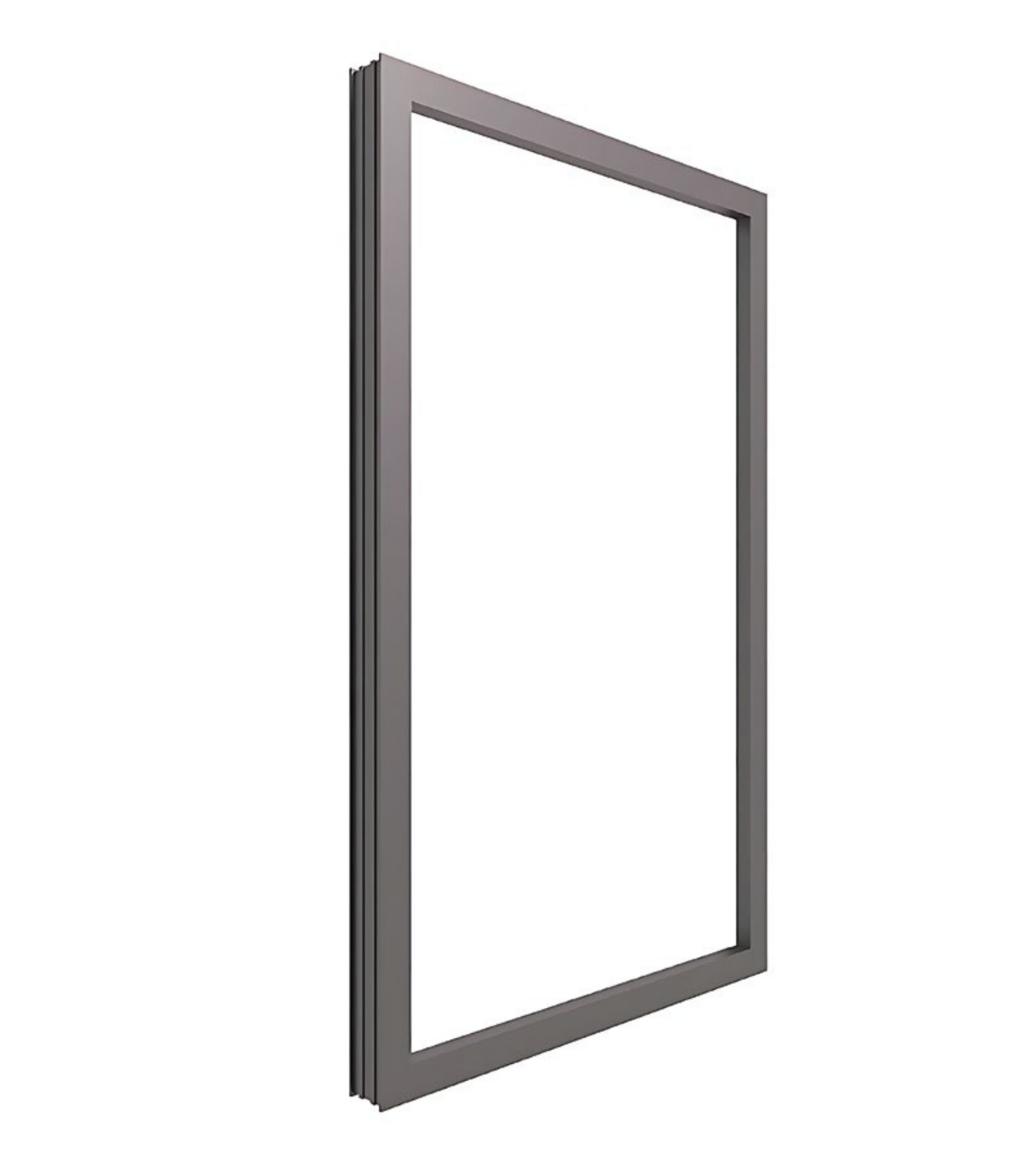

The VLX 80 is a fixed-frame window, meaning it doesn’t open. That’s not a compromise. It’s a deliberate trade: by removing operable hardware, the frame can be slimmer and the glass area larger. The profile measures 1.97 inches wide, which is narrow for an aluminum window, and the frame wall is 0.079 inches thick. That combination gives the unit its defining trait: maximum glass, minimum metal.

Architecturally, the VLX 80 fits where you’d use a picture window: great rooms, stairwells, home offices with a view, and accent walls that need natural light without a busy frame grid. Austin architects and builders like it for contemporary homes in East Austin, mid-century remodels in Crestview, and new construction in Mueller. But it works just as well in a traditional house when you want one clean opening that frames the outdoors like art.

Buyers land on this series for a few reasons. The first is aesthetics: when the glass spans up to 120 inches wide, you get an uninterrupted view without mullions or posts breaking it up. The second is durability: aluminum doesn’t rot, warp, or swell in Austin’s heat and humidity the way wood can. The third is low maintenance: no painting, no sealing, no seasonal fuss.

Hale Windows Austin carries the full VLX 80 line as an authorized ViewLux partner, which means you get manufacturer-backed product support and a local installation team that knows how Austin homes are built. That matters more than most people realize. An excellent window installed poorly will leak, bind, and underperform. We’ll get into that later.

Technical Specifications

Here’s what the VLX 80 Fixed Window brings to the table, in plain terms:

• Frame wall thickness: 0.079 inches. Thin enough to maximize glass area, thick enough to hold its shape under load.
• Profile width: 1.97 inches. One of the slimmest profiles in its class, which translates directly to more visible glass and less visible frame.
• Maximum span: Up to 120 inches wide for a single fixed unit. That’s a ten-foot run of uninterrupted glass.
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated, Gray Tint, and Black Tint. Each serves a different purpose, covered below.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood. Powder-coated finishes resist fading in the Texas sun.
• Thermal performance: Built with thermal break technology and rated under NFRC standards for measured energy performance.
• Wind load: Engineered and rated for Austin-area wind requirements, including higher-exposure sites.

These are manufacturer specifications. What they mean in practice is a window that spans wide openings, shrugs off heat, and looks the part for decades. If your opening is outside these ranges, call us at (254) 736-6486 and we’ll walk through what’s feasible.

Performance Features

Thermal Efficiency
The VLX 80 uses a thermal break, a non-conductive barrier inside the aluminum frame, to interrupt heat transfer from the exterior to the interior. That’s not marketing. It’s measured under NFRC ratings, which means the U-factor and Solar Heat Gain Coefficient are tested, not guessed. For an Austin summer, that’s the difference between a window that radiates heat and one that holds the line. Pair it with Low-E glass and you’ve got a real defense against cooling bills.

Acoustic Performance
Austin isn’t quiet anymore. Between I-35, Mopac, and the flight paths over South Austin, noise is a fact of life. Fixed windows outperform operable ones for sound control because the sash is sealed, not movable. Add laminated glass and the VLX 80 becomes a serious sound barrier. We’ve installed these in homes near Burnet Road and Riverside Drive where traffic noise was the driving factor in the purchase. The improvement is immediate and measurable.

Airtightness & Weather Seal
A fixed window has no operable seams, which means fewer places for air to sneak through. The VLX 80 is engineered for airtightness from the factory, and we reinforce that on site. Every perimeter joint gets AAMA 812 low-expansion foam sealant, which fills gaps completely, stays flexible as the structure settles, and doesn’t over-expand and distort the frame. The result is a unit that doesn’t whistle in January or leak conditioned air in August.

Waterproofing
Water is the killer of window installations. The VLX 80 has a factory-engineered drainage and sealing system, but the real waterproofing happens at install. Hale Windows Austin follows AAMA 2400/2410 installation standards, which cover flashing, sill pan requirements, and water management for the entire opening. We flash the rough opening before the window goes in, set the unit level and square, and seal every joint so water leaves the building, not enters it. Austin’s flash floods and driving spring rains don’t give windows a pass.

Wind Resistance
Texas wind is no joke. Spring storm season brings gusts that test every window in the house. The VLX 80 is wind-load rated, which means it’s engineered to withstand the pressures required for the Austin climate zone. For homes on exposed ridgelines west of town or in new developments with no mature tree cover, we spec the laminated glass upgrade for additional resistance and impact protection.

Security & Hardware
A fixed window is inherently harder to breach than an operable one: there’s no latch to pop and no sash to pry. But there is a frame and a sealed glazing unit holding everything together. The VLX 80 uses structural aluminum framing, and you can order it with laminated or tempered glass if security is a priority. Laminated glass holds together on impact like a windshield, which deters forced entry and slows anyone trying to get through. It’s a quiet upgrade that adds real peace of mind.

Color & Glass Options

The VLX 80 comes in six finishes, and they’re not just colors: they change how the window reads against the house.

• Premium Black is the default for modern Austin builds. It’s sharp against white stucco, limestone, and brick, and it conceals dust better than lighter frames.
• Pure White suits traditional and farmhouse styles, especially when you want the window to disappear into white trim.
• Anodized Silver is raw and metallic. It reads industrial, but in a refined way, and it’s the most UV-stable finish in the lineup.
• Bronze is the workhorse for mid-century and ranch homes. It’s warm without being brown, and it pairs well with Austin’s limestone-heavy architecture.
• Champagne is a lighter metallic tone that works on transitional homes and Mediterranean-style builds around Westlake and Steiner Ranch.
• Teak Wood is a textured woodgrain finish, a smart way to get a warm wood look without the maintenance of real timber.

Glass is where the function lives. Clear glass is just that: maximum light, no filtering. Frosted is for privacy, common in bathrooms, street-facing windows, and side yards. Low-E is the Austin workhorse: it reflects infrared heat while letting visible light through, cutting cooling costs in the summer. Tempered glass is heat-strengthened for safety, required in certain locations by code. Laminated adds impact resistance and sound reduction. Gray Tint and Black Tint reduce glare and solar gain, useful for west-facing wall that get blasted by afternoon sun. We’ll help you match the right glass to the right elevation. Call (254) 736-6486 and we’ll walk through it.

Installation by Hale Windows Austin in Austin

Here’s the thing we tell every client in Austin: the window is only as good as the hole it goes into. A manufacturer can build a flawless product, but if the installation is off, the warranty dies, the thermal performance tanks, and water finds its way in. That’s why install quality is non-negotiable at Hale Windows Austin.

Every VLX 80 installation starts with a pre-install inspection of the rough opening. We check the framing, the existing flashing, and the condition of the surrounding wall before we touch the opening. If there’s rot or water damage, we stop and address it. We don’t install windows over problems.

Then we set the unit. Level, plumb, and square are not suggestions; they’re the whole game. A window that’s out of level by a quarter inch will bind, drain wrong, and look off. We shim precisely, fasten per manufacturer specs, and verify every plane before moving on. Austin’s clay soils shift, and openings move over time. A properly set window accommodates that.

Sealing comes next. We use AAMA 812 low-expansion foam on all perimeter joints, which creates a continuous air and moisture barrier without over-expanding and bowing the frame. That’s followed by the flashings and exterior sealants specified under AAMA 2400/2410, the industry installation standard for performance-grade fenestration. No caulk-and-hope shortcuts.

After the window is sealed, we run a water test on the installation: we apply controlled water to the exterior plane and check for penetration. If it leaks in testing, it would leak in a storm. Better to find out before the furniture goes in.

Austin-specific conditions matter here. Our summers hit 105 degrees, humidity swings from bone-dry to swamp in a week, and spring storms test every penetration in the building envelope. We install for those conditions, not for a mild coastal climate. The details on flashing, foam sealant rates, and sill pan slopes are all chosen for Central Texas reality.

Hale Windows Austin is an authorized ViewLux installation partner, which means our installs keep the manufacturer warranty intact. That’s not a small thing. A window installed by someone who isn’t trained on the product can void the warranty entirely, leaving you with a failed unit and no recourse. We’re trained on this product line, we follow the manufacturer’s installation manual to the letter, and we document every install.

Frequently Asked Questions – VLX 80 Fixed / Picture Window

Get a Quote – VLX 80 Fixed / Picture Window in Austin

If you’re planning a build or a window replacement in Austin and you want the cleanest possible sightline, the VLX 80 Fixed Window deserves a look. We’ll come to your site, measure the opening, review glass and finish options, and give you a written line-item quote with no pressure and no change orders down the road. Call (254) 736-6486 to schedule a free on-site measurement with Hale Windows Austin.

Written by the team at Hale Windows Austin, authorized ViewLux installation partner serving Austin, TX and the surrounding area.
