VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Austin, TX | Hale Windows Austin

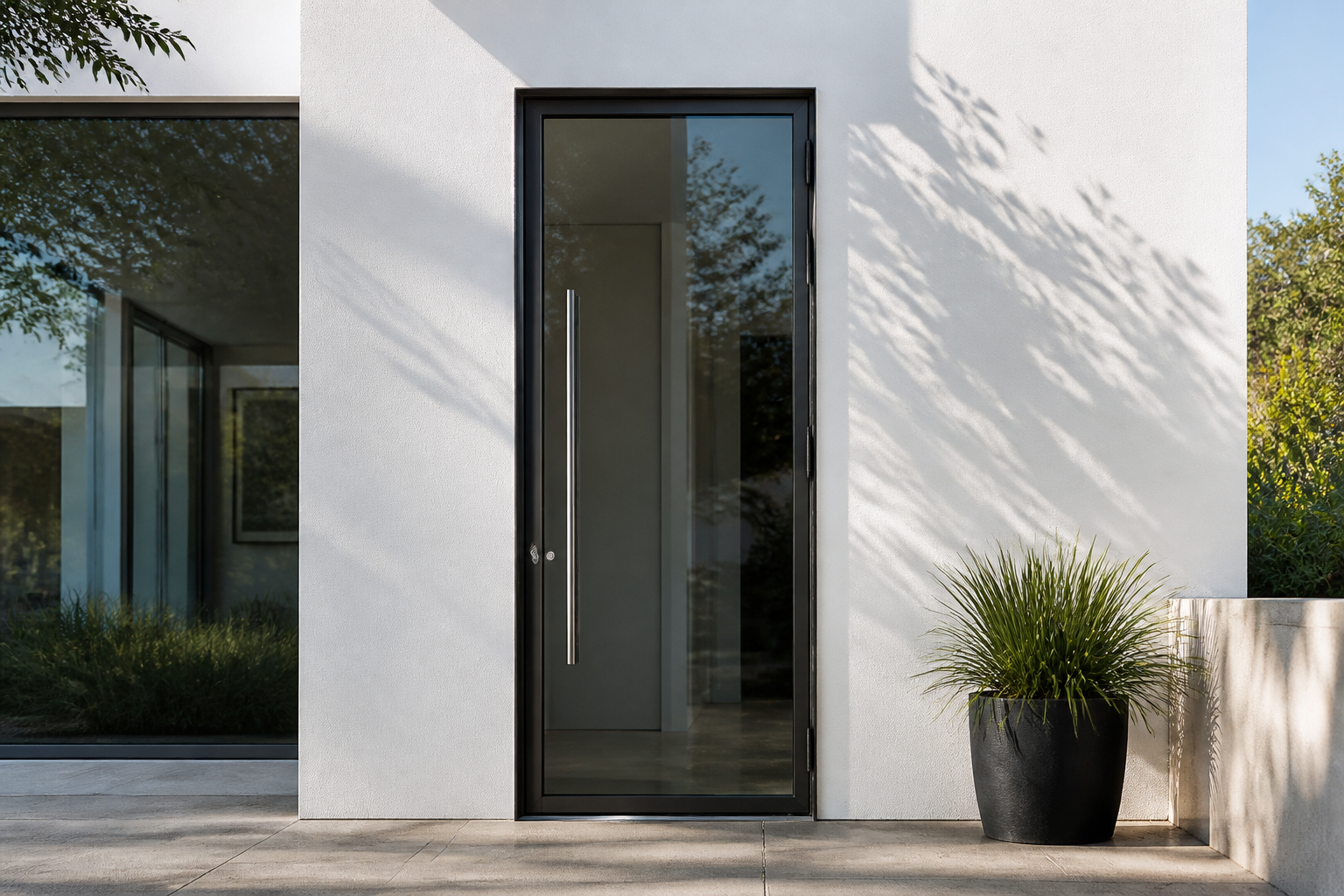

The VLX 100 Swing / Entry Door is a modern aluminum single-entry door with a clean, minimalist frame and a multi-point locking system that secures the door at several points along the jamb. It’s built for Austin homeowners who want a front door that actually fits the architecture of the house instead of fighting it. Hale Windows Austin is an authorized ViewLux installation partner here in Austin, Texas, which means you get the manufacturer’s door combined with a local installation crew that stands behind the finished opening. Call (254) 736-6486 for current pricing and availability in the Austin area.

Call (254) 736-6486

Product Overview – VLX 100 Swing / Entry Door

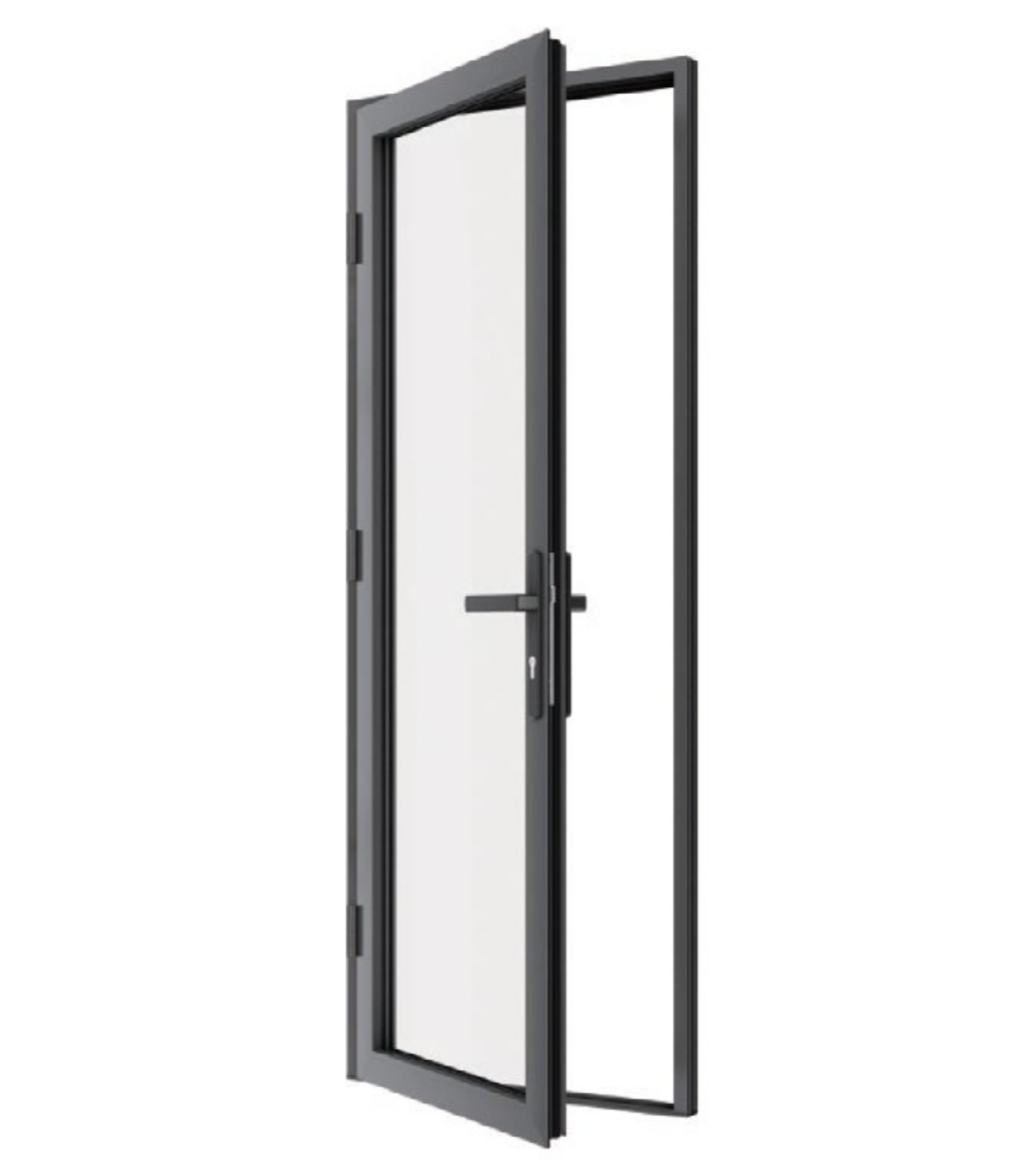

The VLX 100 is a single entry door with a 2.56-inch profile width, which reads as noticeably slimmer than most residential doors on the market. That’s the point. Where a traditional wood or fiberglass door carries thick stiles and raised panels, the VLX 100 keeps its lines flat and honest. The aluminum frame is extruded, not rolled, and the wall thickness measures 0.098 inches, which gives the door real torsional stiffness without the bulk you’d expect. You notice it the first time you close it. There’s no hollow wobble, no flex in the slab when you lean a shoulder against it.

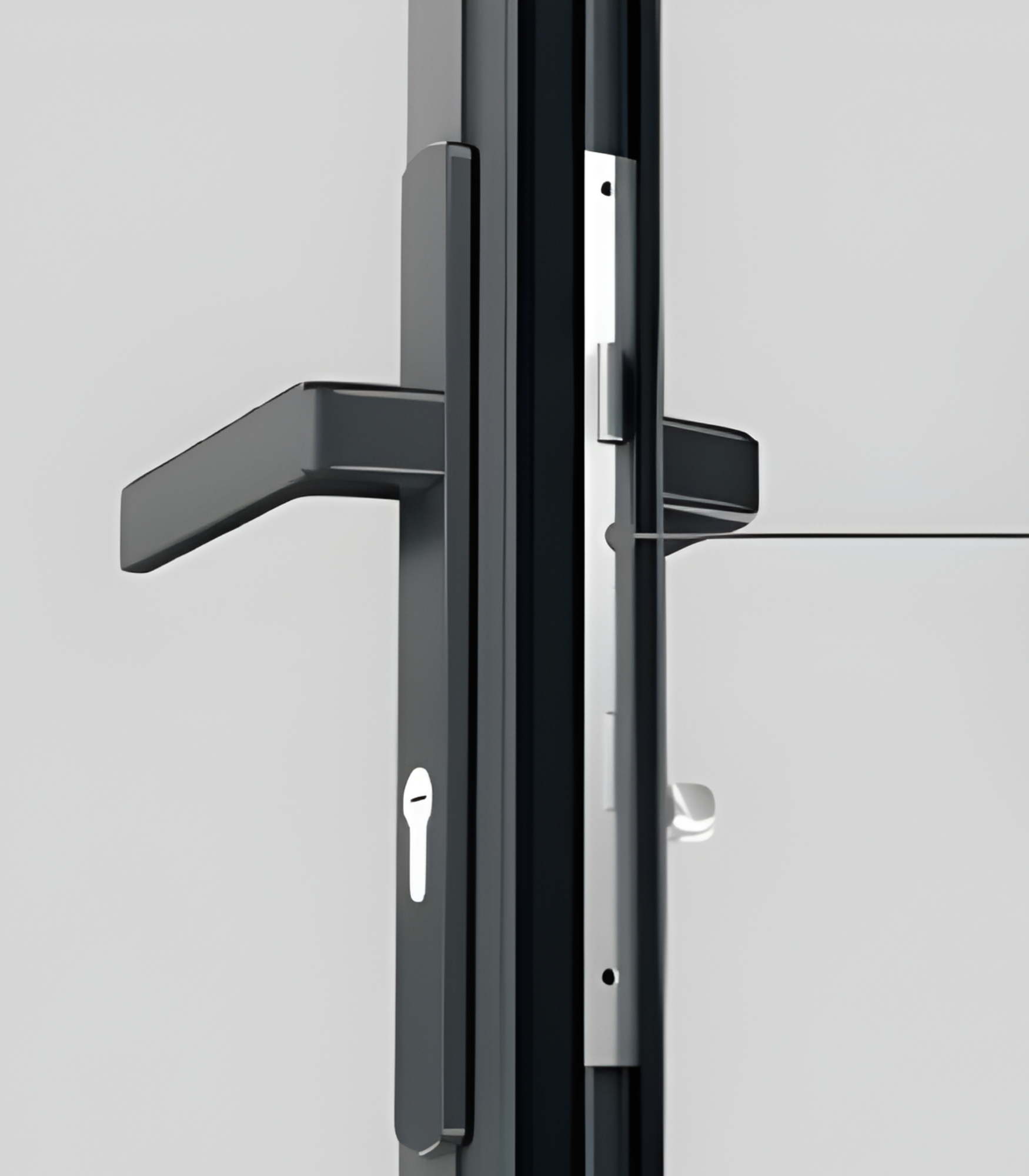

The locking hardware is the other defining feature. Instead of a single deadbolt doing all the work, the VLX 100 uses a multi-point lock that throws bolts at the top, center, and bottom of the door in one turn of the handle. That spreads the force of a forced-entry attempt across the entire jamb rather than concentrating it at one strike plate. For an Austin homeowner, that matters as much for peace of mind as it does for what an insurance underwriter might ask about your exterior door hardware.

This door reads “modern,” and it belongs on homes in Mueller, East Austin, Zilker, or the new builds going up in Leander and Buda just as easily as it does on a mid-century in Allandale. It’s a residential product with commercial-level engineering, and that’s why the buyers who end up with a VLX 100 tend to be the ones who don’t want to replace a front door twice.

Technical Specifications

The numbers on the VLX 100 tell a story of a door that’s engineered for tight tolerances and a long service life in a hot, humid climate like Central Texas. Here’s the spec table we share with clients in Austin so there are no surprises on bid day or install day.

• Wall thickness: 0.098″ extruded aluminum
• Profile width: 2.56″
• Maximum span: Up to 48″ wide single panel
• Glass types: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable Screen, None
• Thermal rating: Thermal break technology, NFRC-rated

Every glass package is available in insulated configurations suited to Austin’s summer heat loading. The maximum panel width of 48 inches means this door works as a true single entry without a fixed sidelite, which keeps the opening costs and framing simple whereas wider openings typically require a different series or a sidelite configuration. We’ll always confirm panel sizing against your rough opening before ordering, because ordering a 48-inch door for a 47-inch rough opening is a $2,000 mistake we’d rather not see you make.

Performance Features

Any decent door in Texas gets hot on the inside in August. The question is how hot, and for how long, and whether that heat creeps into your living room in a way your HVAC bill notices. Here’s how the VLX 100 performs, system by system.

Thermal Efficiency – The VLX 100 carries a full thermal break through the frame and slab. That means the exterior aluminum skin is physically separated from the interior skin, which interrupts the thermal path that makes unbroken aluminum doors sweat and conduct heat in Austin’s 100-degree afternoons. The result is an NFRC-rated energy performance number that lets you compare this door against fiberglass and wood on paper, instead of trusting a sales pitch. In our experience installing these across Travis and Williamson County, homeowners report noticeably cooler interior surfaces around the doorframe when the AC starts working in July.

Acoustic Performance – The multi-point lock pulls the slab snug against the gaskets at every latch point, which has a real effect on sound. We’ve had clients on Burnet Road and South Lamar tell us the difference in street noise after swapping an old hollow-core door for a VLX 100 was the single most noticeable change in the project. The insulated glass packages help too, and for buyers near a busy corridor like 183 or MoPac, the laminated glass option takes that a step further.

Airtightness & Weather Seal – The VLX 100 uses a continuous compression gasket system around the full perimeter of the slab. Because the multi-point lock engages the door evenly at all three latch points, the gaskets compress uniformly. That’s the opposite of a classic deadbolt door, which pushes hardest at the lock and often gaps at the top corner. For Austin’s allergy season, that gap matters. Pollen, cedar fever, and construction dust from the subdivision going up next door all find their way through a poorly sealed entry.

Waterproofing – The frame is engineered with a sill design that channels water down and out rather than letting it pool against the interior threshold. The perimeter sealant matters just as much, and we install to AAMA 812 using low-expansion foam on every joint. In an Austin flash flood or a driving Hill Country thunderstorm, the seal at the rough opening is the difference between a door that stays dry inside and a door that slowly rots the subfloor underneath it. Most homeowners never look at that joint. We do.

Wind Resistance – The extruded aluminum frame and 0.098-inch wall thickness give the VLX 100 load-bearing performance that exceeds what a typical wooden or vinyl entry door can claim. Austin sits in a wind-load zone that requires doors and windows to handle sustained wind pressurization, especially on exposures facing west toward the Hill Country. The VLX 100 carries wind-load ratings so you meet your local code without the framer having to add blocking or creative interpretations to get the inspection passed.

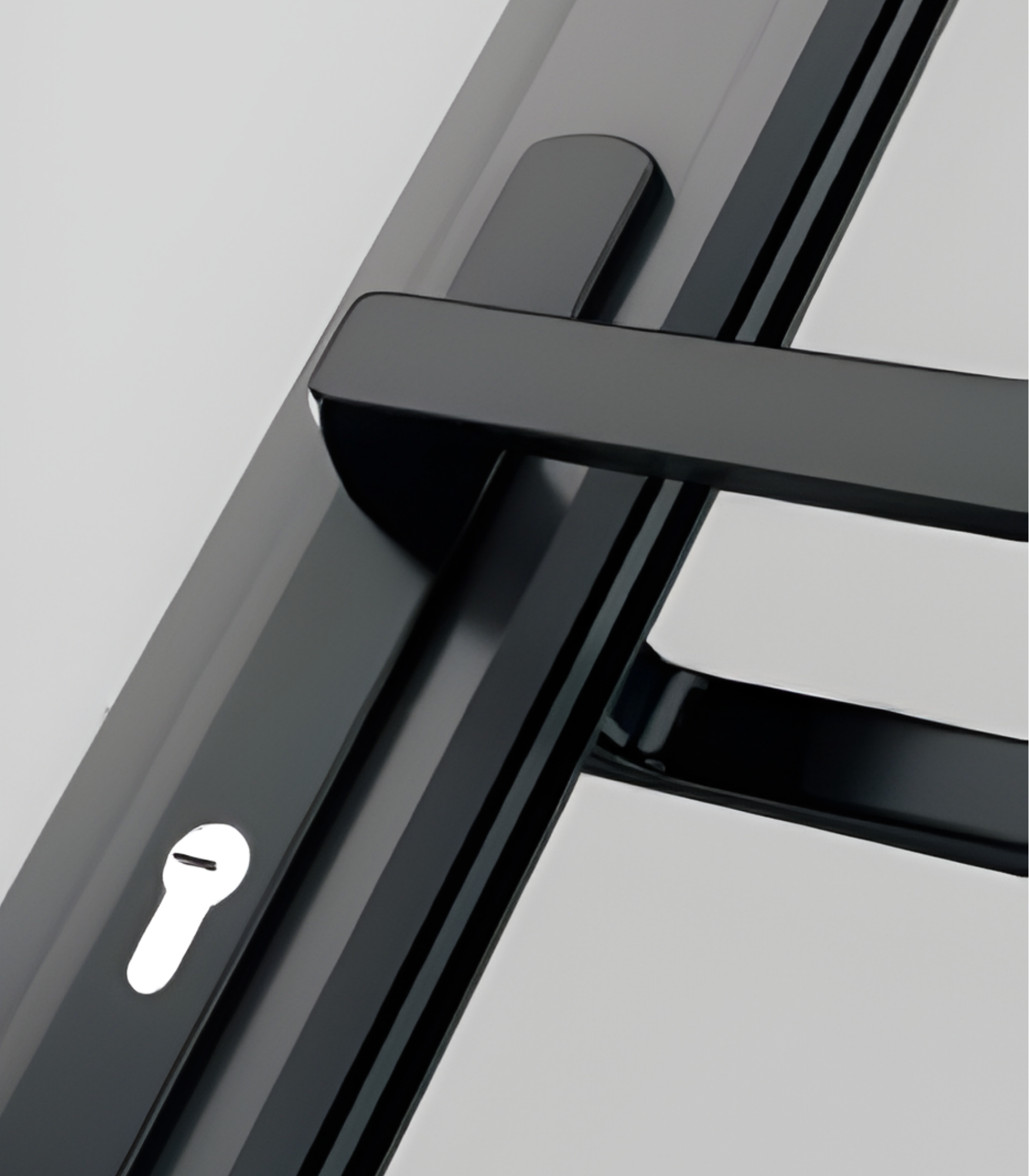

Security & Hardware – The multi-point locking mechanism is the headline, and it should be. One throw of the lever drives bolts into three points of the jamb simultaneously. The hardware is integrated into the slab, not surface-applied, which means no exposed screws on the interior face for someone to punch out with a screwdriver. For homeowners in an Austin neighborhood where porch piracy and casual break-ins are a live concern, the VLX 100’s hardware is a genuine layer of deterrence, not a cosmetic feature.

Color & Glass Options

The VLX 100 comes in six finishes. Premium Black is our most-ordered finish in Austin, and it reads extremely well on both the white-painted brick ranches in Crestview and the black-window modern farmhouses going up in Liberty Hill. Pure White does heavy lifting on traditional homes, and on a Spanish-style home in Tarrytown with a white door and iron hardware it’s a look that’s hard to replicate with wood without yearly paint maintenance. Anodized Silver and Bronze both lean commercial and pair cleanly with metal roofing or steel storefront details. Champagne is a warmer metallic that shows up on more transitional builds. Teak Wood is an aluminum finish that mimics wood grain, and we’ve installed it on homes in South Austin where the HOA wants a wood-look entry but the owner doesn’t want the sun to eat a real wood door in three years.

On glass, Clear and Low-E are the standard choices. Low-E cuts solar heat gain in an Austin summer, and for a west-facing entry it’s nearly a no-brainer. Frosted and Obscure give privacy for doors that face a street or a neighbor’s window. Tempered and Laminated are safety glass options – laminated adds impact resistance and sound dampening, and if you have kids or a dog who thinks the glass panel is a challenge, it’s the responsible choice. We keep samples of all six finishes and the glass tints in our Austin showroom so you can make the call in person, not off a phone screen.

Installation by Hale Windows Austin in Austin

The best door on the market doesn’t matter if it’s installed by a crew that treats trim and shims as optional. Here’s how we install the VLX 100 in Austin and the surrounding area.

Before we touch the opening, we check the rough opening dimensions, the condition of the studs, the subfloor level at the threshold, and the exposure of the entry. If the rough opening was framed in a hurry, we’ll correct it before the door goes in. A door set into a racked opening will bind at the top corner in six months, and the manufacturer will point to the install. Not the door.

We set the frame level, plumb, and square, using shims at the hinge and latch points. Then we seal the perimeter with low-expansion foam to AAMA 812 standards. The foam does two jobs: it seals the thermal envelope at the rough opening, and it stops air and water from finding the gap between frame and stud. We follow AAMA 2400 and 2410 installation standards, which in plain English means the door is installed so that the water management details around the opening work as a system rather than relying on a bead of caulk to hold back a Hill Country storm.

After the door is set and the foam cured, we run a water test on the exterior, calibrate the multi-point lock, adjust hinges so the slab seats evenly against the gasket, and then clean the work area. That last part matters to us. Your entryway should look like a door was installed, not like a construction site.

One thing we tell every Austin homeowner: an improperly installed door voids the manufacturer warranty. ViewLux backs its products, but no manufacturer covers labor or defects that come from a bad install. That’s the single biggest reason to have an authorized partner like Hale Windows Austin do the work instead of the lowest-bid handyman. You’re buying the door and the install as one product. If one half of that fails, the other half doesn’t save you.

Frequently Asked Questions – VLX 100 Swing / Entry Door

Get a Quote – VLX 100 Swing / Entry Door in Austin

If you’re ready to price the VLX 100 for your home, call Hale Windows Austin at (254) 736-6486. We’ll schedule a free on-site measurement, walk you through finish and glass samples, and give you a written line-item quote with no surprises later. Serving Austin, Round Rock, Cedar Park, Georgetown, Pflugerville, and the surrounding Hill Country since day one.

Written by the team at Hale Windows Austin, authorized ViewLux installation partner serving Austin, TX.
